Interfaces for Sinclair Spectums

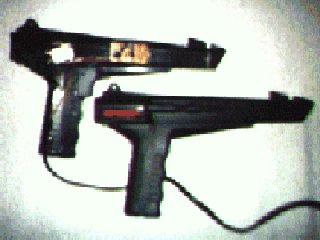

The light gun is for the +2 and +3
and allows   you to play a game
by Pointing at the TV.games like,
�shoot the duck � etc

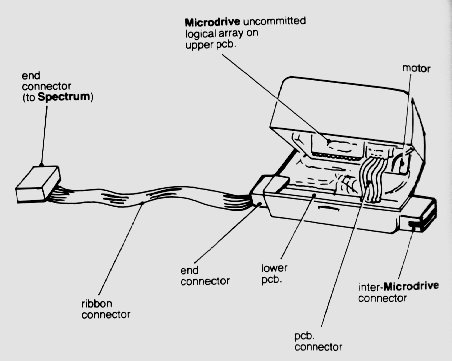

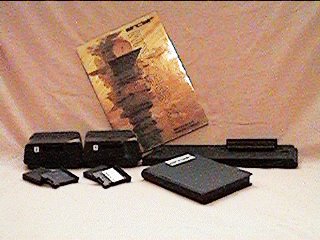

Sinclair ZX Microdrives

Connect up to eight ZX microdrives
to your ZX Spectrum. Each holds
up to 100k bytes on any one
microfloppy. Each can transfer
at 16k bytes per second- with an
average access time of 3.5 seconds

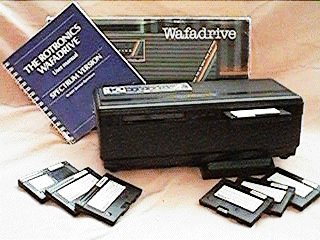

Rotronics Wafadrives

The
Wafadrive is a fast access storage system
using special magnetic tape drive.It enables
programs and data to be loaded into Spectrum
much more quickly and conveniently than is
possible using cassettes.Futhermore,file handling
is easily performed since the Wafadrive
locates files automatically without the operator
haveing to position the tape.

Wafadrive Spec

Type:
Dual BSR "stringy floppy"
Capacity: Min. 128k formatted ( using 50'wafers )
Tape format: Single track, 1k sectors
Data format: FM encoded
Tape speed: 10"/sec ( read write )
15"/sec ( search )
Transfer rate: 18k Baud ( 2k Bytes/sec approx )
Access time: Worst case - 6.5 secs ( 16k wafers )
45 secs ( 128k wafers )
Type: Cartridges
Capacity: 16k,64k and 128k ( formatted )
Implementation: Five wire RXD,TXD,RTS,CTS,and
GND Baud rates: Softwera selectable 110,150,
300,600,1200,2400,4800,9600,and 19200
Size: 8k Rom pageed automatically
Reserved Ram: 2292 bytes ( with no files opened )
Files supported: Program,machine code or data files
Number of files: 32 maximum ( 16 using 16k wafers )

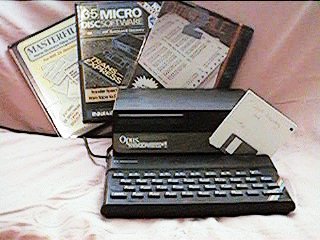

Opus Discovery

3.5�250k disc drive Double density
disc interface parallel printer interface
joystick interface video monitor interface
peripheral through connector built-in power
supply utilities on Rom including format
and verify ram disc facility random
access files fully supported connections
for second drive upgrade comprehesive user manual

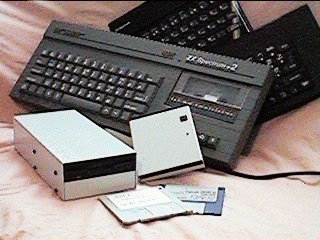

The Plus D

MGT,s the disc interface that snapshots
all your cassette software to disc in
seconds. the printer interface that
prints out any screen.simple enough
for a beginner,yet state of the art for
the expert user.with all the sinclair
interface1.the PLUS D will transfrom
your 48k,128, or +2 spectrum

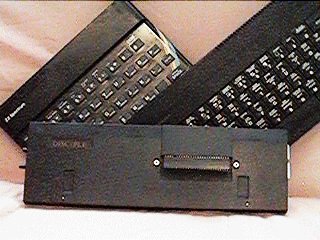

The Disciple

The  Plus D,s big brother. all the same
features, plus networking and joystick
ports. Another brillant MGT design.And
internal layout of the Disciple

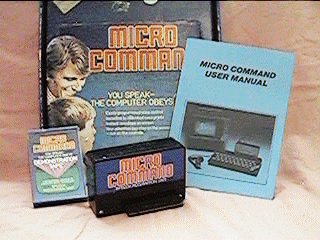

Micro Command

Easily programmed voice control
Sensitive to indiviual prints
Instant response on screen
Your attention can stay on the screen- not on the controls
You speak-the computer obeys

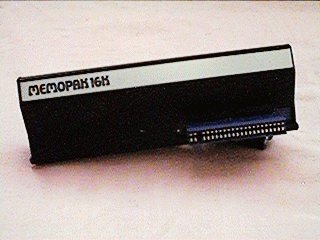

Memopak 16k Ram Pack

16k-byte RAM pack for massive add-on
memory.With the Ram pack,you can
also run some of the more sophisticated
ZX Software-the Business and Household
management systems for example

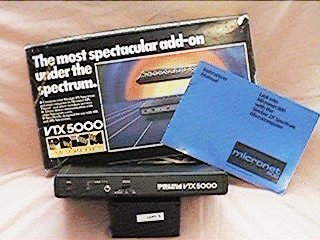

Micronet 800

Link into
Micronet 800 with the Sinclair
ZX Spectrum Microcomputer Modem.
connecting the modem to the telephone
link and connecting to the BBS and
download pic, games, art, sounds
and etc.

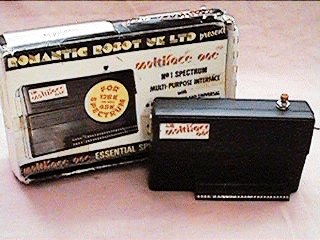

Multiface

Multiface is a MUST for every Spectrum
owner.It can freeze a program any
time and back it up. It transfers between
tape, disk, cartridge, wafer.It also lets
you Peek/POKE, study/modify ALL! Multiface
does all at a touch of a button , is fully
automatic,menu driven, a joy to use. For 48,128.+2

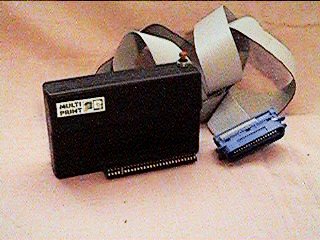

Multiprint

The ultimate spectrum printer interface.
menu-driven joy to use,programmable!,
8k Rom / 8k Ram, 1.2m centronics cable,
freeze button, multi-toolkit unique
& best for spectrum 48k,128k,+2

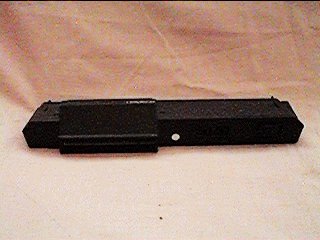

Sinclair Interface 1

The
 ZX interface 1 unit is attached to the rear and
base of the Spectrum. It links your Spectrum to
as many as eight Microdrives, up to 63 other
Spectrum computers and ,through its RS232
standard interface unit,a vast range of standard
peripherals Microdrives and Microdrives cartridges
replace the cassette player and tape for storing
programs and data.By inserting  Microdrives cartridges
you can save,verify and load programs in seconds.
Each  cartridge can store up to 85k of date and using
the maximum of eight  Microdrives,your Spectrum will
have up to 680k on-line storage capacity! Any program
is located automatically with a typical access time of
3.5 seconds.Using the network lead provided with
the interface unit,you can link your computer to
another one - either a ZX Spectrum or another
ZX Spectrum+.This network can then be extended to
a maximum of 63 other Spectrums.Information is
exchanged between them at a rate of 10,000
characters a second. The ZX Interface 1 unit also
includes an RS232 interface with a 9-way D socket
through whivh printers,other standard peripherals,
modems and other computers can be linked to your
Spectrum. A standard interface cable is also available.

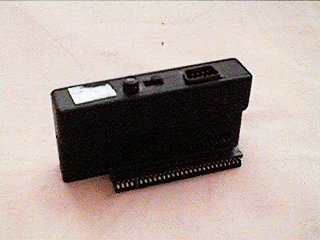

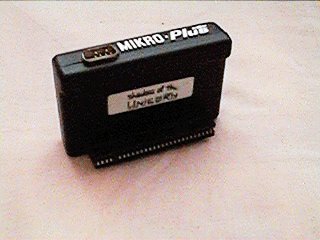

Joystick interface

with built
in game �Shadow Joystick
interface of the unicorn�.

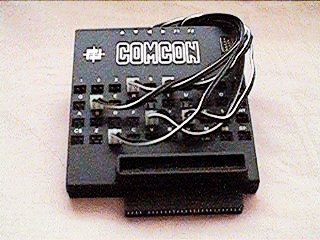

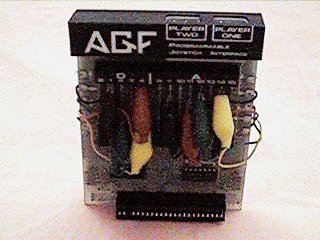

Two
programmable Joystick.





Spectrum
interface supports kempston
Rom cartridge software,with a full
expansion bus at the rear. the turbo
works with two standard joysticks



Joystick
interface with built in fast or slow game control.

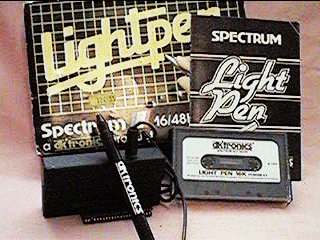

Light Pen


The light pen is a device which will detect
the light emitted by the Televisiion screen
,and will send a signal to the Spectrum. When
used with appropriate softwrae,it can be used
 to pick items from a menu, or draw designs
on the screen. It works in the following way sine
in the TV, the display is made up of a flying spot
of light deflected across and down the screen at
very high speed, by carefully timind the receipt of
the pulse of light as the spot passes in front of
the pen, the exact position of the Light-pen can
be determined.the programs supplied with the
Light-pen use this information to calculate the
X ( horizontal ) and Y ( vertical ) co-ordinates
corresponding to the point where the pen is positioned.

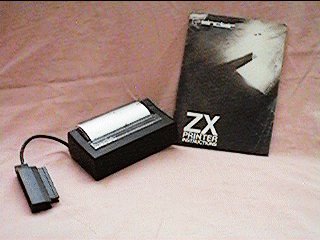

Sinclair ZX Printer

Printing speed is 50 characters per
second, with 32 characters per
line and 9 lines per vertical inch.
The ZX Printer connects to the rear
of your computer.

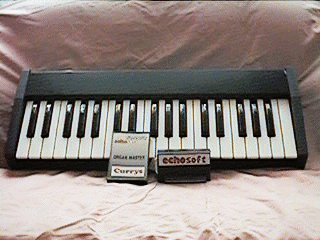

Organ Master

Spectrum muice Keybroad play mono sound for the TV. Echosoft tape to load sounds.

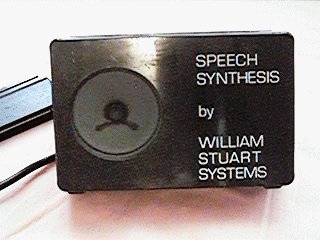

Speech Synthesis






ZX Spectrum 32k Rampack

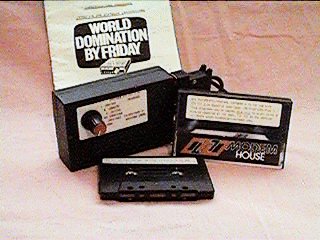

Spectrum VTX 711




The combination of software and interface
which makes up the VTX 711 is the most
 powerful communications package ever
written for the spectrum range of microcomputer.
The system has been designed to complement
 the Voyager range of modems, and to be sufficently
flexible to enable the widest possible range of
applications, and yet remain simple to use.
discover most of the features available as standard.
The manual has been written in a simple manner,
 but does expect you to have a basic knowledge of
your computer, and it'soperating systems.
 Hackers and programmers will discover a
wide range of additional
 features enabling applications far beyond that of the
average user, and are invited to explore using the
pokes contained within the Appendix. We reserve
 the right to change or modify the programme without
notice, but updates will always be available either
free of charge, or at nominal cost. The Spectrum
VTX 711 interface is designed to work specifically
with the VTX 711 prestel and terminal software and
with a Voyager modem. This combination give the
Spectrum very powerful capabilities 300 baud,
1200/75, 75,1200 baud,autodial, autologon, viewdata
and terinal emulaton, file transfer, telesoftware
downloading plus many other communication
 features. The interface is designed to work with
any Spectrum 48k, Spectrum +, Spectrum 128k
computer; it willalso workwith an interface 1 or 2
connected without affecting the computers power
supply the modem has it's own mains power supply.
 As the interface does not have a through port it may
not connect directly with some printers. these
printers would require a bus extender such as
the currah nicroslot. The interface may also be
used at speeds upto 4800 for "back to back"
communications between Spectrum, etc.

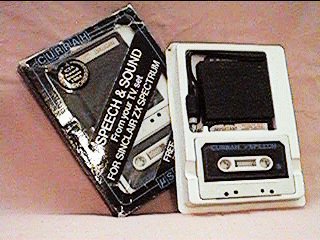

Speech and Sound from your TV set




The currah Micro Speech is an allophone speech
synthesiser, which means that it uses individual
 speech sound strung together to make intelligible
speech. This is different to some speech
synthesisers available today which have a fixed
 vocabulary; unlike these systems the MicroSpeech
 has an unlimited vocabulary and can synthesise
any word or sentence in the English language.
The user merely has to become familiar with the
speech sounds of English which are different from
letters and the allophone symbols used to represent them.

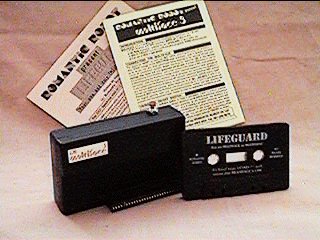

Multiface 3



Multiface 3 is a true Multipurpose interFace for
Spectrum +3/ +2A with:
1 Fully universal and 100% automatic backup
 to tape or disc.
2 8k Ram extensin suitable for our lifeguard,
or as a buffer, etc.
3 Multi Toolkit to study/modify/develop programs,
Poke infinite lives etc.
4 Full ues of Dos in 48k mode.

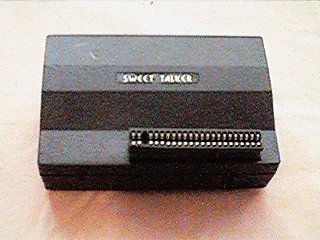

Sweet Talker

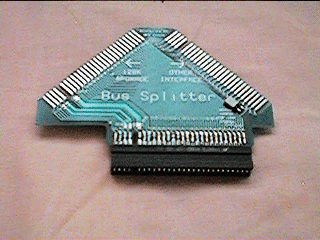

Bus Splitter





Spectrum On/Off switches for 16k or 48k only

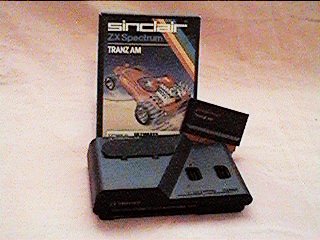

Interface 2




Interface 2 has 2x Joystick port and 16k Rom slots to play Spectrum Games

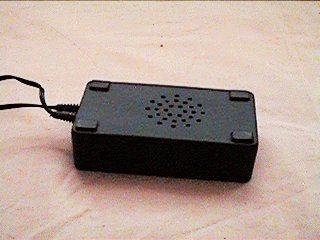

Spectrum Exsch Speaker
